LED Transparent Screen
Unlock the power of transparency with our cutting-edge LED Transparent Screen technology.
Extraordinary High Transparency
60-90% Transparency
Our screens boast an extraordinary level of transparency, ranging from 60% to 90%, making them virtually invisible.
Thin & Lightweight
With a slim 8cm thickness and a weight of just 8Kg/㎡, our screens are incredibly compact and easy to install.
Seamless Integration
The frameless design allows for seamless integration into any environment, creating a stunning visual experience.
No Steel Frame Required
Innovative Design
Our screens are designed to be self-supporting, eliminating the need for a traditional steel frame.
Reduced Installation Cost
By removing the steel frame, we've significantly lowered the cost and complexity of installation.
Versatile Placement
With no frame, the screens can be installed in a wide range of locations, including walls, ceilings, and more.
Unique Display Effect
Captivating Visuals
Our transparent screens offer a truly unique and captivating display effect, making your content stand out. The screens blend seamlessly into any environment, creating a clean and modern aesthetic.
Immersive Experience
Viewers are drawn into the content, creating an immersive and engaging experience.
Endless Possibilities
The versatility of our transparent screens allows for a wide range of creative applications.
Quick and Easy Maintenance
Quick Servicing
With no complex components, our screens can be serviced quickly and efficiently.
Minimal Downtime
Maintenance and repairs can be performed with minimal disruption to your operations.
Cost-Effective
The simplified maintenance process results in significant cost savings over time.
| Pixel Pitch | 2.97mm / 3.91mm / 10.42mm |
|---|---|
| LED chip | SMD2121/1921 |
| Product Size | Module size 500*125mm / Cabinet size 1000*1000mm |
| Power consumption | Average: 240W/㎡ · Maximum: 800W/㎡ |
| Screen Weight | ≤6kg/㎡ |
| Power Supply Brand | YUANCHI |
| Transparency Rate | >50%-65% |
| IP Rating | IP45 |
| Average Lifespan | ≥100,000 operating hours |
| Power Requirements | 220V±10%; AC50HZ |
| Screen Brightness | 1500-4500cd/㎡ |
| Viewing | 5m-250m |
| Viewing Angle | Horizontal ≥160° Vertical ≥140° |
| Gray Level | ≥16 bit |
| Color Temperature | 5500K-15000K (adjustable) |
| Driving Method | 1/4S 1/8S 1/14S 1/16S |
| Attenuation Rate | Less than 0.05% in 2 years |
| Refresh Rate | ≥3840HZ |
| Frame Rate | ≥60HZ |
| Trouble-Free Operating Time | ≥10,000 hours |
| Led chip Failure Rate | ≤1/10,000 |
| Control System | Colorlight/Novastar |
| Operating Environment | -10~+65 ℃ |
| Installation Method | behind glass window, Hanging installation, fixed installation |

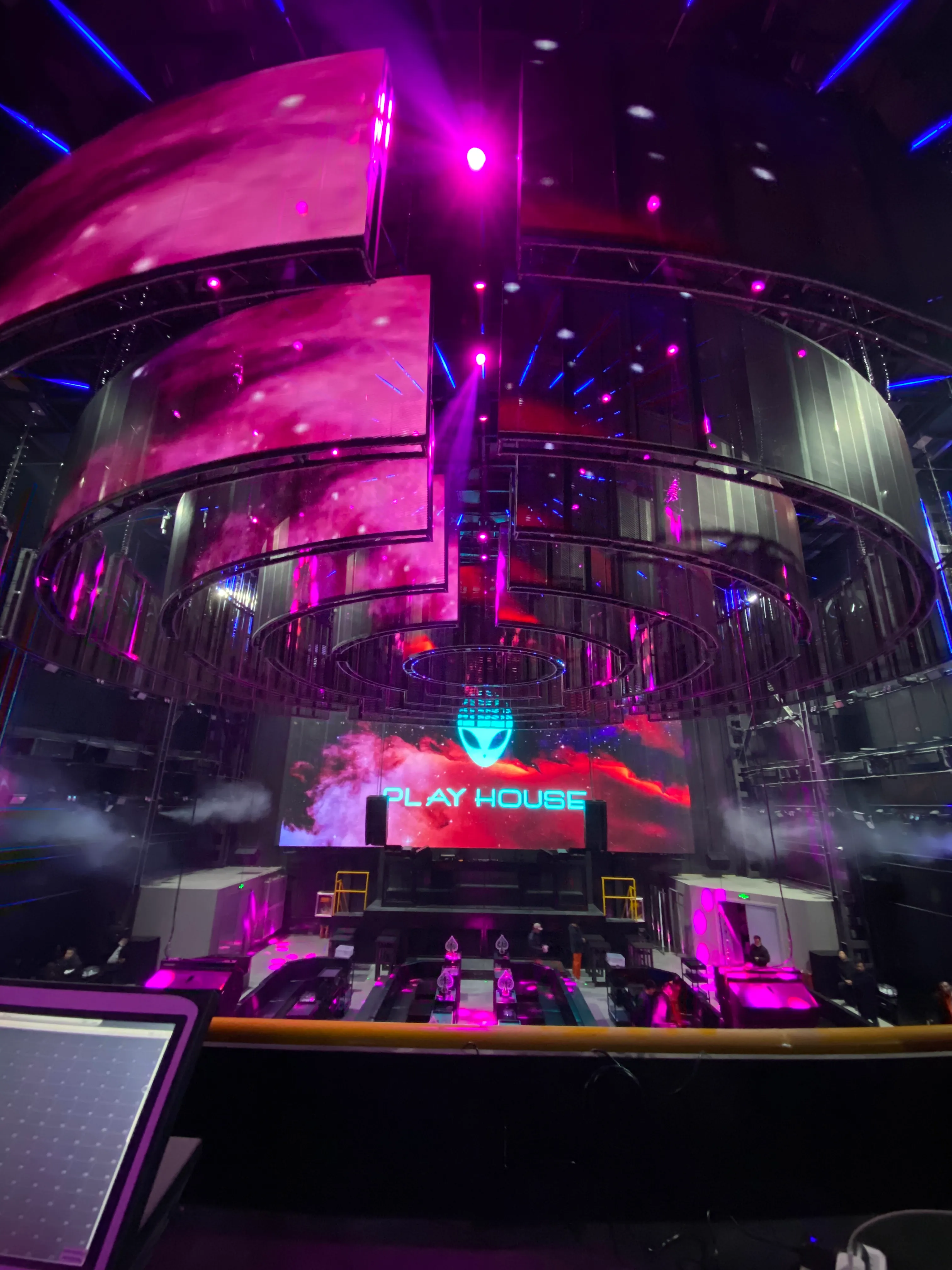

Selected projects
